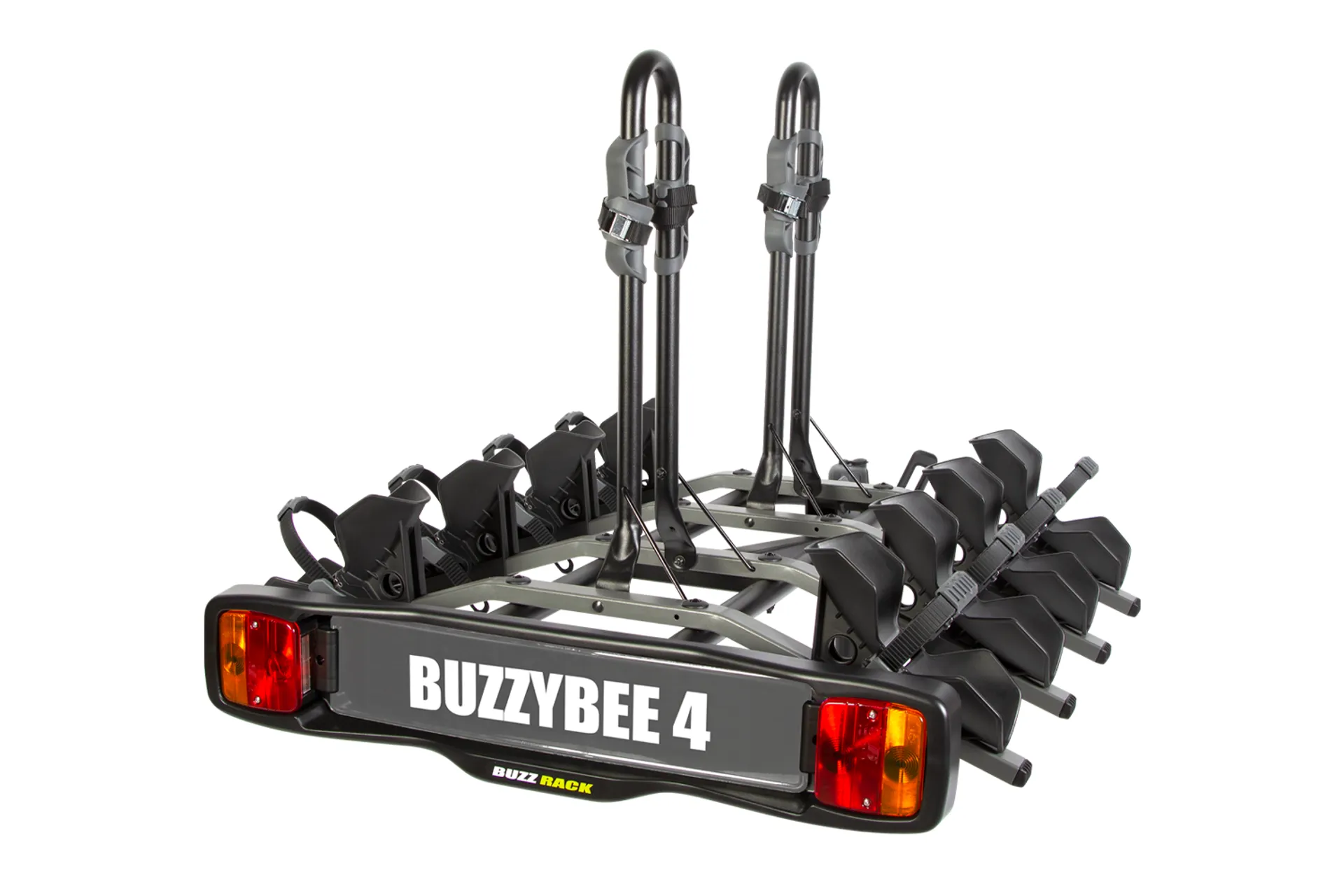

The BUZZYBEE 4 is a very simple designed; simple, strong, secure and the best value for your money.
The BUZZYBEE 4 is very compact and light for a 4 bike carrier with a weight of 15.5kg! Very compact geometry but fits most bike sizes!
Assembly:Even though it is not assembled, BUZZYBEE 4 is very easy to put together: assemble the wheel support frame to the base using 8 screws, assemble the light support with 2 more screws, install the license plate, slide in the plastic wheel supports, fit the rack to the tow ball with no tools needed and you are ready to go!

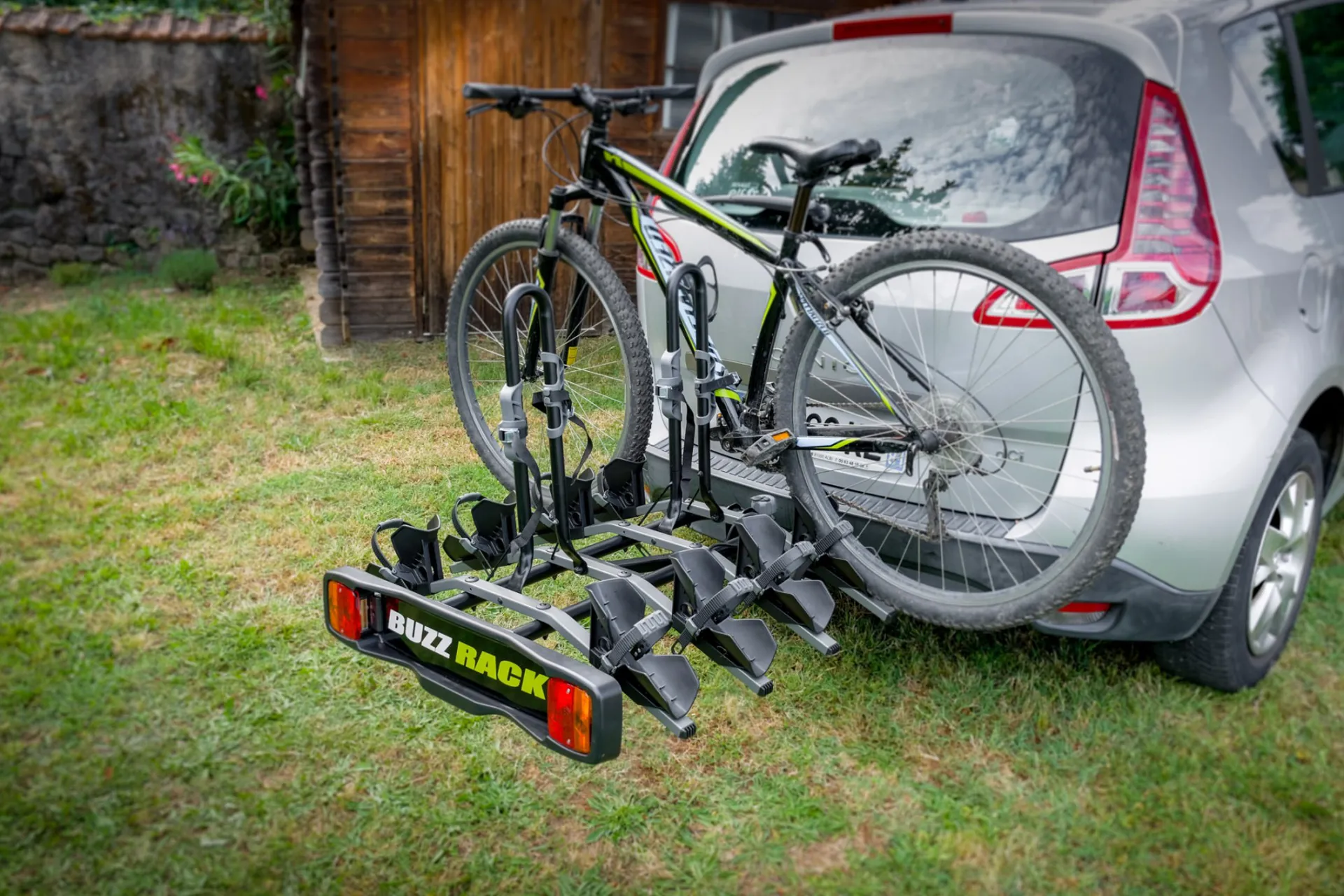

Fitment:When you first place the BUZZYBEE 4 on the tow ball it supports itself – you can let go of it and it won’t fall to the ground. You’ll then take the weight again, spin the tightening knob until it’s tight, and lock it. BUZZRACK‘s carriers comply with the very exacting standard XPR-18-904-4 and therefore include an anti-sway tensioner; this has an integrated handle and 2 or 3 turns are usually sufficient. The video below shows the fitting to the car and the installation of bikes.
Lighting:The BUZZYBEE 4 comes with a 7 pin lighting system. 7 pin to 13 pin adapter is not included but can be purchased as an option.
FEATURES
- The wheel holders will accommodate most wheelbases, even small children’s bikes. You can reverse the wheel supports for the really small bikes. See technical data below
- The long wheel rubber-padded wheel straps hold tyres up to 3.25” wide; pull on them to tighten, and use the quick release to loosen
- The BUZZYBEE 4 is entirely suitable for carbon frame bikes; the rubber bike frame pads and high resistance straps hold any type of tube firmly but gently.
- The maximum permitted load is 60kg, with no bike weighing more than 20kg
- The down tube size is limited to 75mm diameter (3″); whatever bikes you have, always load the heaviest bikes nearest to the car
- The patented conical fitting fits to all tow balls, even to the bolt-on tow balls we see occasionally that do not meet standards for neck length or ball diameter.
- A reminder that it locks to the tow ball.
- The BUZZYBEE 4 sits high on the tow ball, well clear of speed bumps and other hazards such as steep ferry ramps.
- The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.
- All parts are replaceable if e.g. someone forgets that a tow bar carrier is fitted and reverses into a wall – which happens!
- The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
- Requires 65mm clearance from center of tow ball to rear of vehicle.
- Not suitable for trailers, campers, or RVs

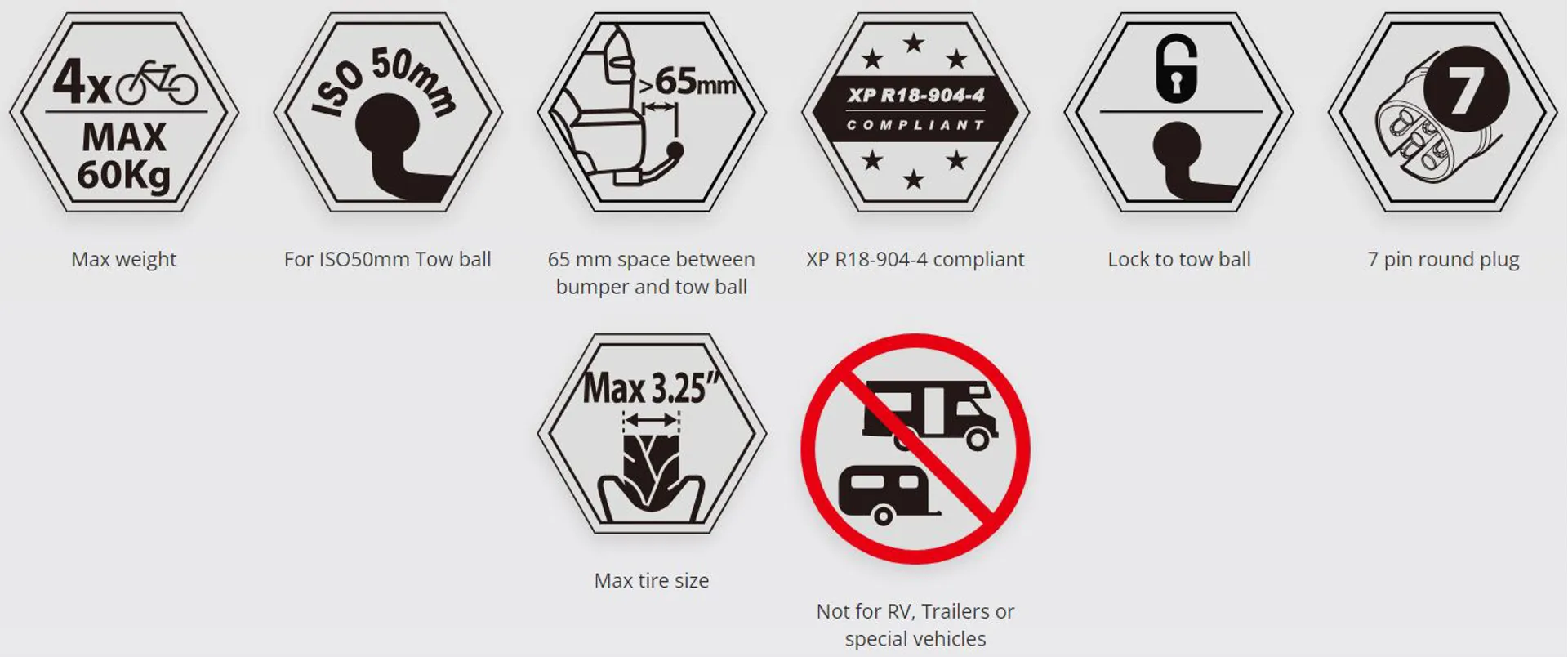

SPECIFICATIONS
- Capacity4 Bikes
- Fitment50mm Towball
- Weight15.5kg
- Max Load60kg
- Bike WeightMax 20kg
- Light Board7 Pin
- LocksRack

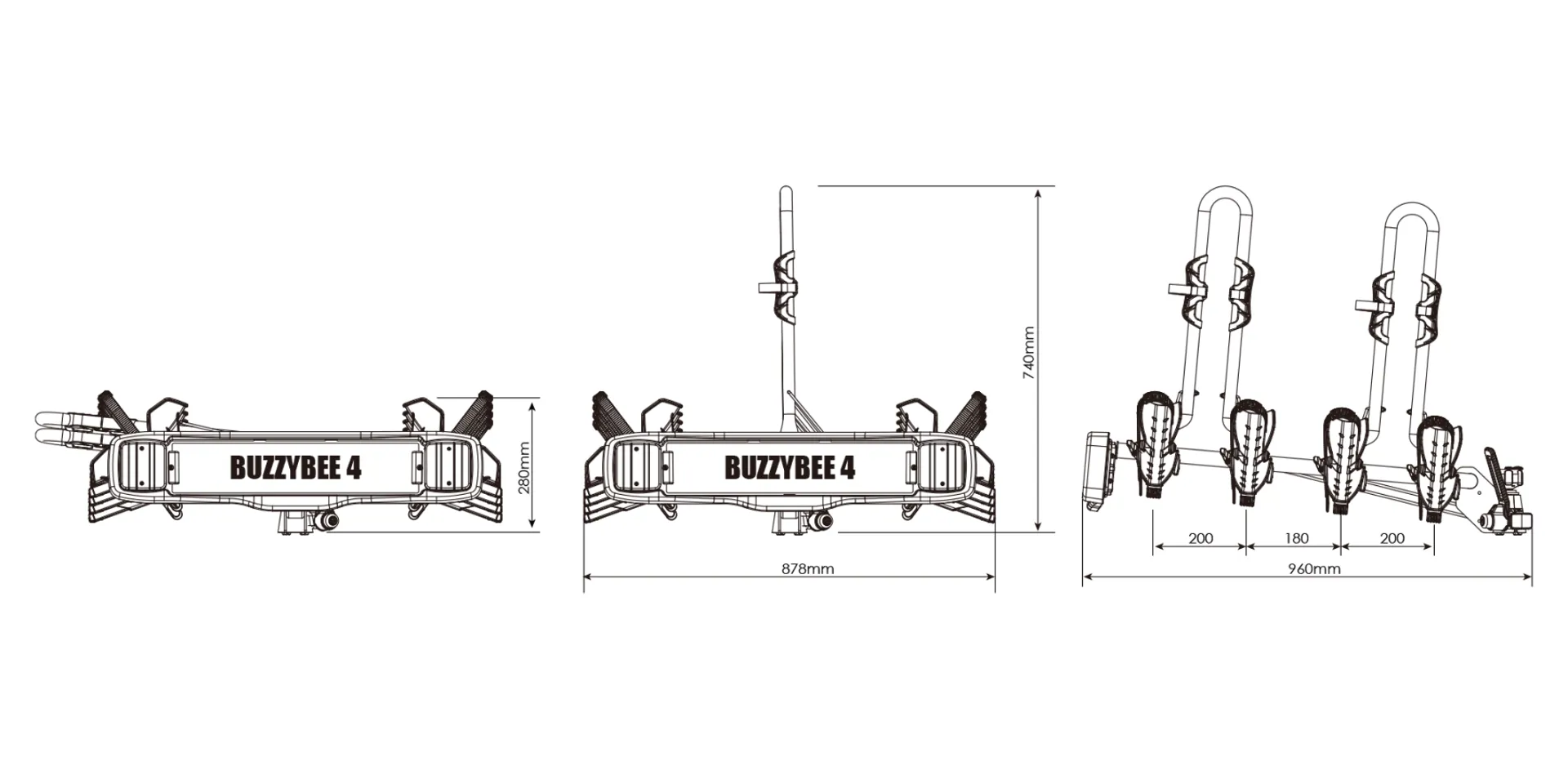

- Dimensions(width x depth x height): 88 x 96 x 74 cm (Height 28cm when folded)
