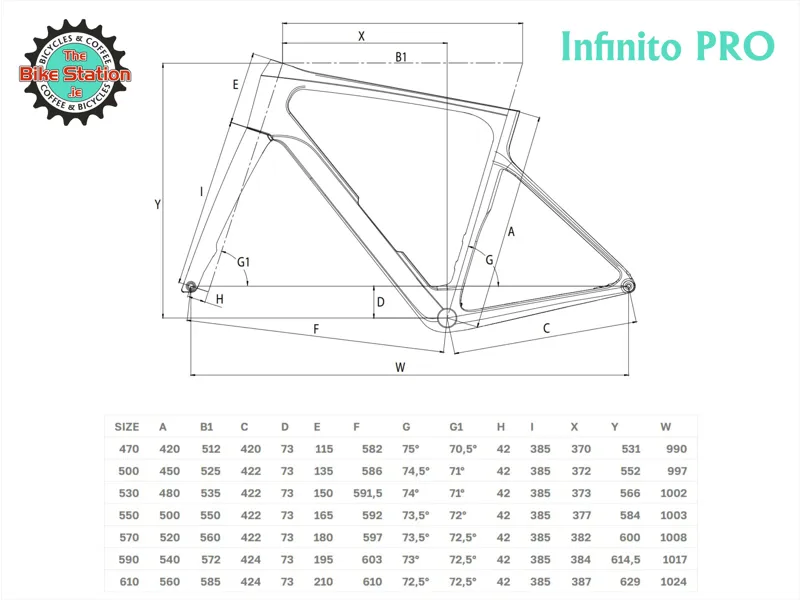

Frame
Bianchi Infinito, Flat mount 140/160, PressFit 86.5×41 mm, Thru Axle 12×142 mm, Sram UDH compatible, Max chainring compatibility: 46-54T, Internal cable routing, Tire clearance: ETRTO 622-40 sizes 47-50-53-55-57-59-61
Fork
Bianchi Infinito, Flat mount disc 140/160, Thru axle, OLD: 100 mm, Steerer tube diameter: 1″1/8
Headset
Acros for internal cable routing
Shifters
Shimano 105 Di2, shifter lever ST-R7170, caliper BR-R7170
Crankset
Shimano 105, FC-R7100, Hollowtech 2, 50x34T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm); 175 mm (61 cm)
Cassette
Shimano 105, CS-R7101 11-36T, 11-12-13-14-15-17-19-21-24-28-32-36T
Rear Derailleur
Shimano 105 Di2, RD-R7150, 12sp
Bottom Bracket
Shimano SM-BB71-41B, press fit type for road
Front Derailleur
Shimano 105 Di2, FD-R7150
Chain
Shimano CN-M7100
Brakes
Shimano BR-R7170 Hydraulic disc brake. Brake lever included in the shifter.
Rotor
Shimano RT-CL700 Center Lock, 160 mm
Stem
Bianchi AL6061, rise -7° Size: 90 mm (47-50 cm); 100 mm (53-55 cm); 110 mm (57-59 cm); 120 mm (61 cm)
Handlebar
Bianchi Compact, AL6061, diameter 31.8 mm, reach 80 mm, drop 130 mm Size: 380 mm (47-50 cm); 400 mm (53-59 cm); 420 mm (61 cm)
Grips / Extensions
Bianchi Hexagon tape, 2.5 mm thickness, black
Wheels
Bianchi B30R, alloy, internal channel width 23 mm, profile height 30 mm, 2 to 1 spoke pattern, j-bend spokes, black, HG11 body, weight: 1790 g
Tire
Pirelli P7 Sport, 35-622, 60 TPI
Seatpost
Bianchi Infinito, Countervail technology, full carbon, aero-flex shape length: 320 mm, 0 offset (47-55 cm); 380 mm, -20 mm offset (57-61 cm)
Saddle
Bianchi Manganese Rail, length 260 mm, width 150 mm
Seatpost Clamp
Bianchi Custom
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
